Plugin for pipe elements joints on 2 or 4 bolt-on plates.
Brace Splice Plate
Plugin for elements joints of rolled or welded section pipes on 8 bolted plates
Brace Splice Plate 2

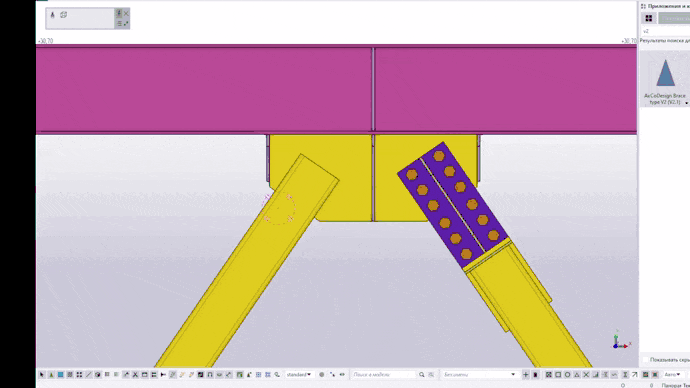

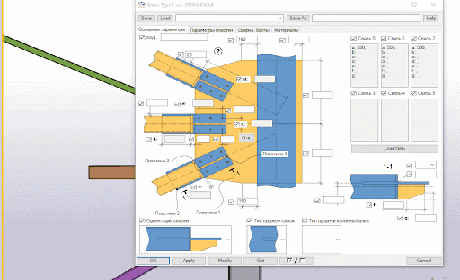

Plugin for pipe bracing connections bolted. It is possible to fix up to 6 elements in one joint.
Brace Type 1

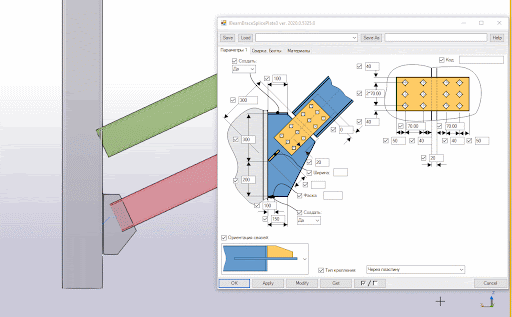

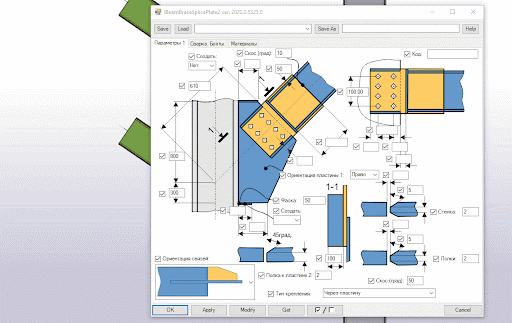

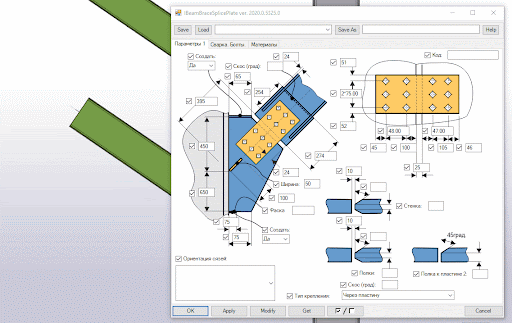

Plugn for braces and I-beams on bolts. Splice plates can be used in connections.
I brace splice plate
Plugin for modeling rolled or welded I-beams according to the 2440 series. Connection check, report generation are included.
Serie 2440
